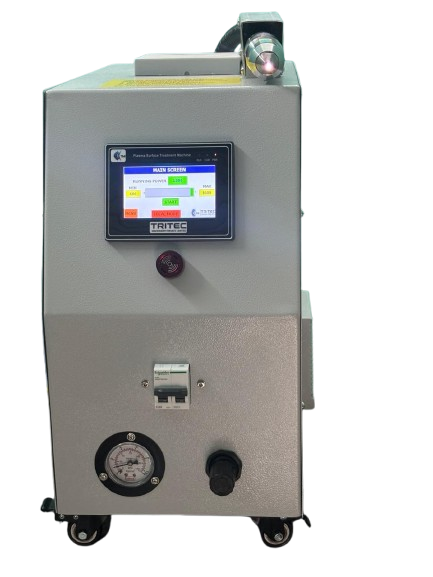

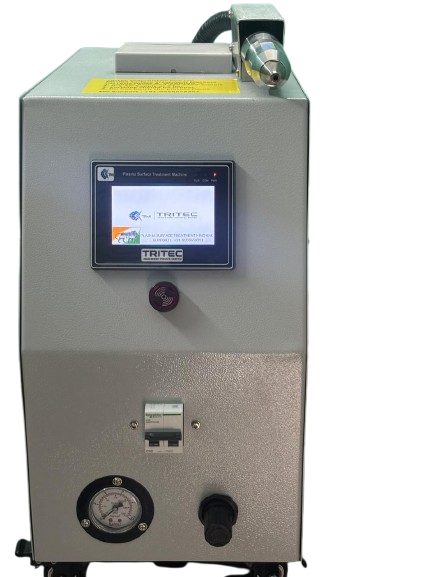

Static Head Plasma Treatment Machine

Technical Parameters of Static Single Nozzle Plasma treatment Machine

Specification FOR STATIC HEAD PLASMA ; TRITEC -1600W-S

  • Treatment Width : 8-16 mm
  • Supply of Voltage : 220-230V
  • Power input : 10A/220V
  • Maximum Power : 1600 W
  • External Air : 1 to 1.5 bar
  • Working Power Adjustment : Can set from HMI 600W to 1600W as per requirements
  • Output Cable ( L) : 3 meter unbreakable metal insulated
  • Dimensions (Nozzle) : 245 x 40 x 60 in mm
  • Weight : 21 KG
  • Ambient temperature : 50-60 Degree Celsius
  • Output Voltage : 6 KV-7.5 KV
  • Output Voltage : 6 KV-7.5 KV
  • Output Frequency : 30-35 KHz
  • Plasma Current : 2.0-30.0 Amp
  • Dimensions : 520 x 270 x 500 in mm
  • Dyne Value : 46-54 Dyne/cm
  • Air Interlocking : Available
  • Synchronization with machine : Available , Potential free NO wire are available for external synchronization

We TRITEC MACHINERY PRIVATE LIMITED are leading manufacturer of High Quality Plasma Surface Treatment Machines We provide excellent product quality at an affordable rate and the best service supports.
