Rotational Head Plasma Treatment Machines

Technical Parameters of Rotational Nozzle Plasma Treatment Machines

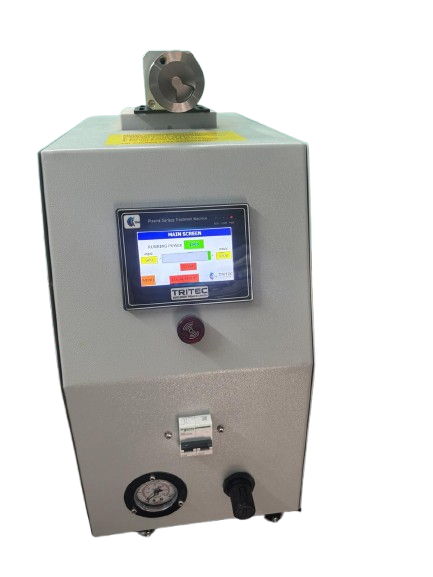

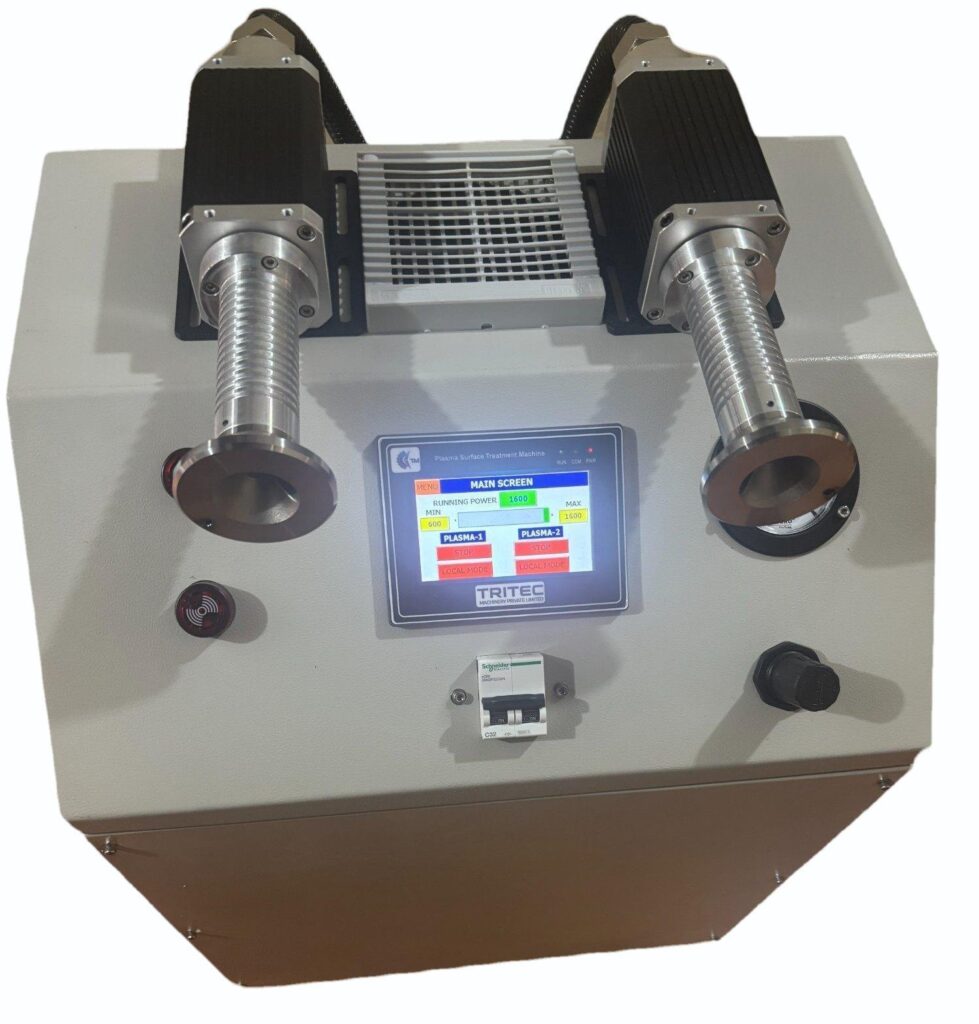

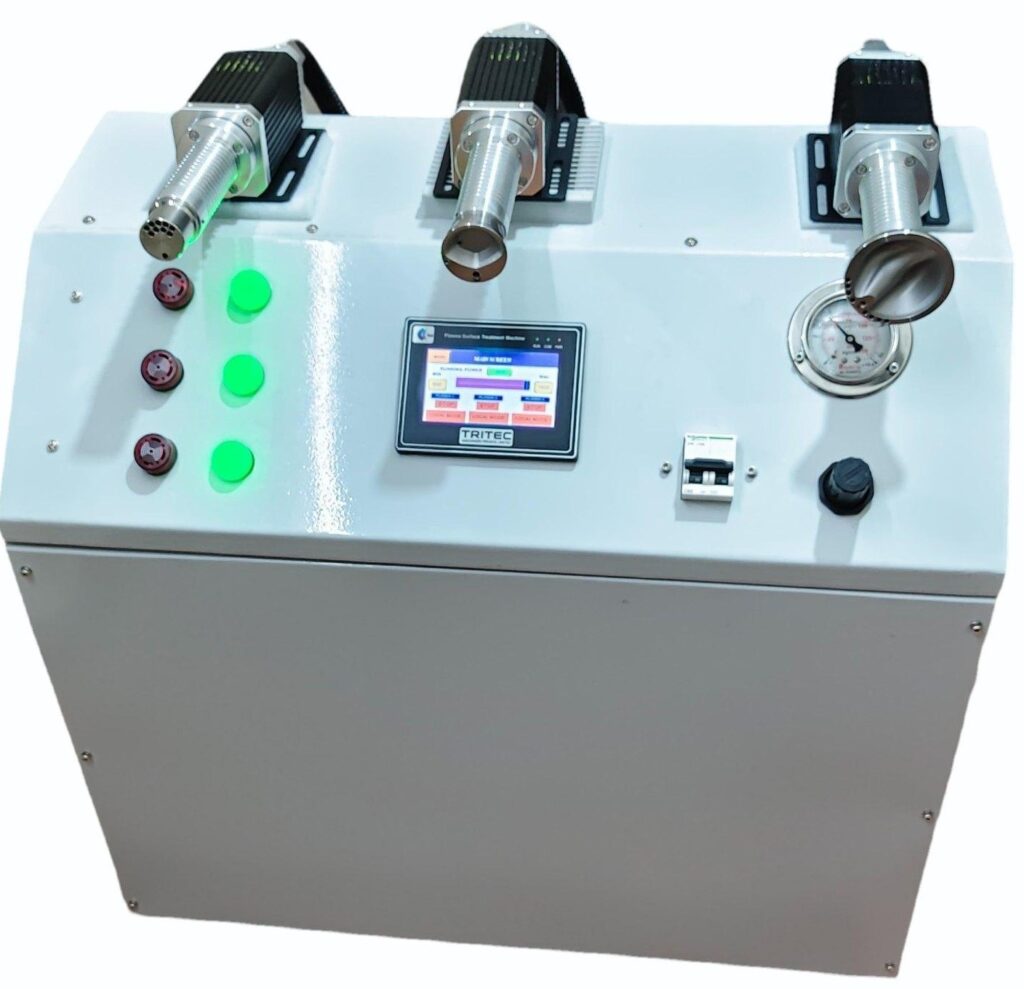

Specifications	TRITEC-1600W-R Single Head Plasma	TRITEC-3200W-R Dual Head Plasma	TRITEC-4800W-R Triple Head Plasma
Treatment Width	20-75 mm	20-75 mm of each Nozzle	20-75 mm of each Nozzle
Supply of Voltage	220-230V	220-230V	220-230V
Power input	10A/220V	16A/220V	16A/220V
Maximum Power	1600 W	3200 W	4800 W
External Air	1 to 1.5 bar	1.5 to 2 bar	2 to 2.5 bar
Working Power Adjustment	Can set from HMI 600W to 1600W as per requirements	Can set from HMI 600W to 1600W as per requirements of each nozzle	Can set from HMI 600W to 1600W as per requirements of each nozzle
Output Cable ( L)	3 meter unbreakable metal insulated	3 meter unbreakable metal insulated	3 meter unbreakable metal insulated
Dimensions of Plasma Head	330 x 68 x 72 mm	330 x 68 x 72 mm of each Head	330 x 68 x 72 mm of each Head
Weight	21 KG	35 KG	45 KG
Ambient temperature	50-60 Degree Celsius	50-60 Degree Celsius	50-60 Degree Celsius
Output Voltage	6 KV – 7.5 KV	6 KV – 7.5 KV per nozzle	6 KV – 7.5 KV per nozzle
Output Frequency	30-35 KHz	30-35 KHz	30-35 KHz
Plasma Current	2.0-30.0 Amp	2.0-30.0 Amp per nozzle	2.0-30.0 Amp per nozzle
Dimensions	520 × 270 × 500 mm	520 × 380 × 720 mm	740 × 380 × 720 mm
Dyne Value	46-54 Dyne/cm	46-54 Dyne/cm	46-54 Dyne/cm
Air Interlocking	Available	Available	Available
Synchronization with machine	Available, Potential free NO wire are available for external synchronization	Available, Potential free NO wire are available for external synchronization	Available, Potential free NO wire are available for external synchronization
